ISUZU ELF NPS 75 4x4
ISUZU ELF
NPS 75 4x4
*) Estimasi harga on the road 2013 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi | ||
|---|---|---|
| Panjang Keseluruhan | 5985 | (mm) |
| Lebar Keseluruhan | 2040 | (mm) |
| Tinggi Keseluruhan | 2455 | (mm) |
| Jarak Terendah | 210 | (mm) |
| Jarak Poros Roda | 3365 | (mm) |
| Jarak Pijak Roda Depan | 1680 | (mm) |
| Jarak Pijak Roda Belakang | 1650 | (mm) |
| Seating Capacity | - | (person) |
| Front Axle Capacity | - | (kg) |
| Rear Axle Capacity | - | (kg) |
| Mesin | ||
|---|---|---|
| Model/Tipe | 4HK1TCN | |
| Sistem injeksi bahan bakar | Direct Injection, OHC, Intercooled Turbo | |
| Isi silinder | 5193 | (cc) |
| Tenaga maksimum | 150/2600 | (PS/rpm) |
| Torsi maksimum | 41/1500-2600 | (Kgm/rpm) |
| Garis tengah x langkah | 115 x 125 | (mm) |
| Kapasitas Tangki | 100 | (liter) |
| Ban & Velg | ||
|---|---|---|
| Ukuran ban | - | |
| Bahan | - | |
| Ban Depan | Single, 7.50-16-10L | |
| Ban Belakang | Double, 7.50-16-10L |
| Berat | ||
|---|---|---|
| Curb Weight (berat kosong) | 2910 | (kg) |
| Gross Vehicle Weight (berat total) | 6000 | (kg) |
| Transmisi | ||
|---|---|---|
| Model | MYY5T | |
| C | - | |
| gigi 1 | 5.315 | |
| gigi 2 | 3.053 | |
| gigi 3 | 1.655 | |
| gigi 4 | 1.000 | |
| gigi 5 | 0.721 | |
| gigi 6 | - | |
| gigi 7 | - | |
| gigi 8 | - | |
| Rev | 5.068 | |
| Final Gear Ratio | 5.125 |
| Fitur & Standard | ||
|---|---|---|
| Air Conditioning | No | |
| Radio CD+MP3 | No | |
| Power Steering | - |
| Lain-Lain | ||
|---|---|---|
| Kursi supir | - | |
| Seat belt | Yes | |
| Accu | 24-50 | (V-AH) |
| Altertnator | 24-50 | (V-A) |
| Kapasitas Tangki | 100 | (liter) |
| Max. Gradeability | 30 | (%) |
| Max. Speed | 110 | (Km/h) |
| Clutch Size | - | (mm) |
DIMENSI & UKURAN

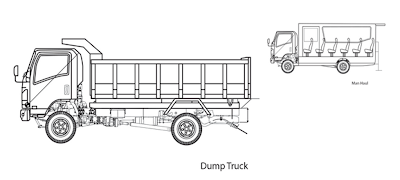

APLIKASI
